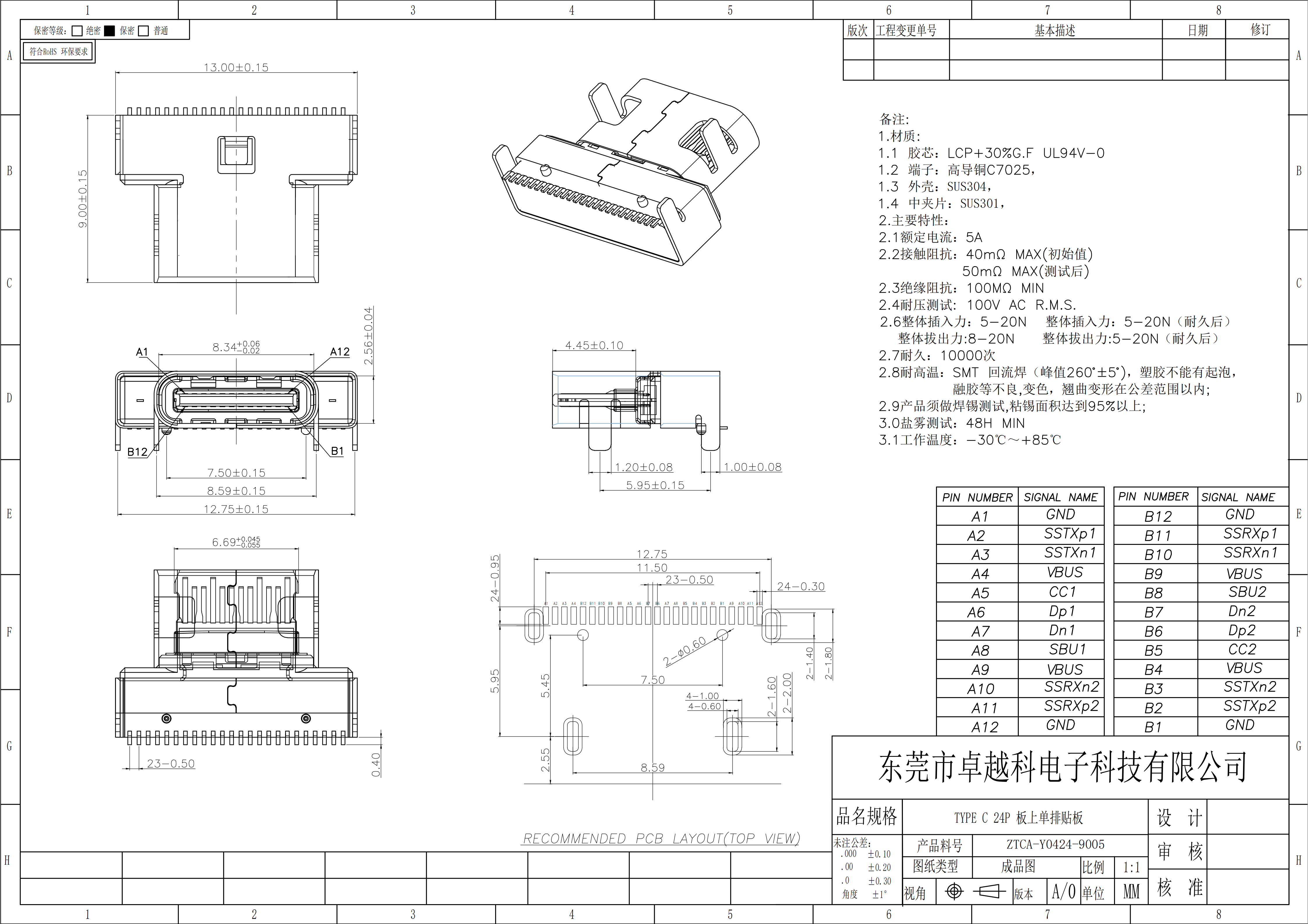

Name: Type YPEC 24PIN Board Upper Female Seat Single-row SMT Four-pin Insert Plate L=9.0 No spring or convex
Material No.: ZTCA-Y0424-0005
Material:
Rubber core: LCP+30% G. F UL94V-0
Terminal: high conductivity copper C7025
Housing: SUS304
Middle clamp: SUS301
Main characteristics:
Rated current: 5A
Contact impedance: 40mQMAX (initial value) 50mQ MAX (after test)
Insulation impedance: 100MO MIN
Withstand voltage test: 100V AC R.M.S
Overall insertion force: 5-20N Overall insertion force: 5-20N (after durability) Overall pull-out force: 8-20N Overall pull-out force: 5-20N (after durability) 2.7 Durability: 10000 times
High temperature resistance: SMT reflow welding (peak value 260 '± 5 *), the plastic shall be free of blister, bad glue melting, discoloration and warping deformation within the tolerance range
The product shall be subject to soldering test, and the soldering area shall reach over 95%
Salt spray test: 48H MIN
Operating temperature: - 30 ° C~+85 °
