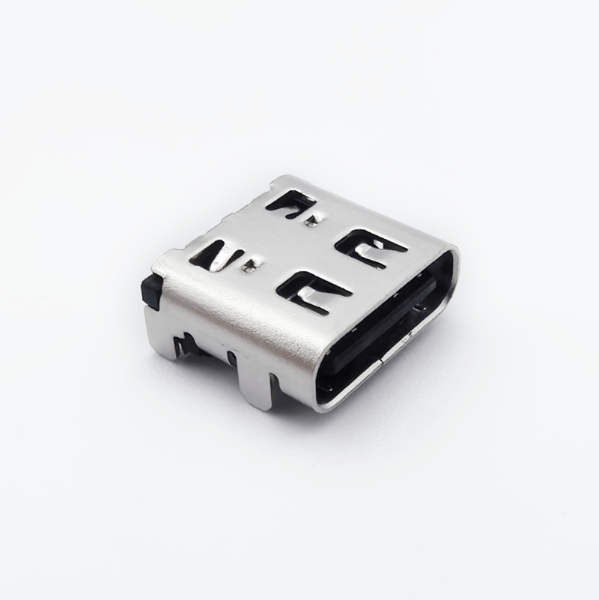

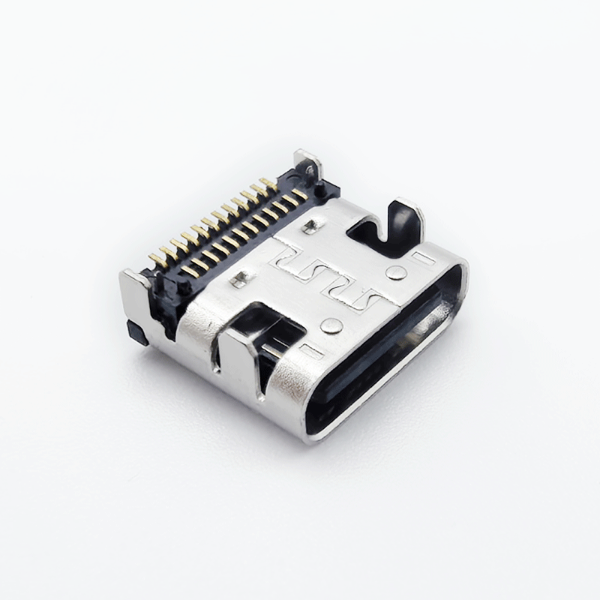

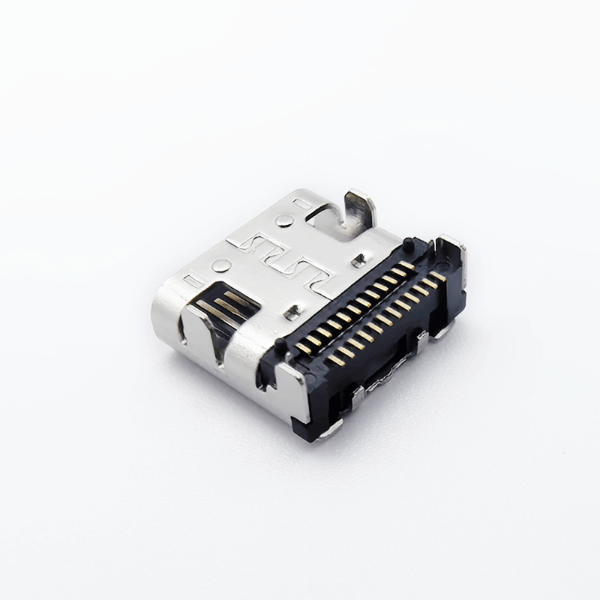

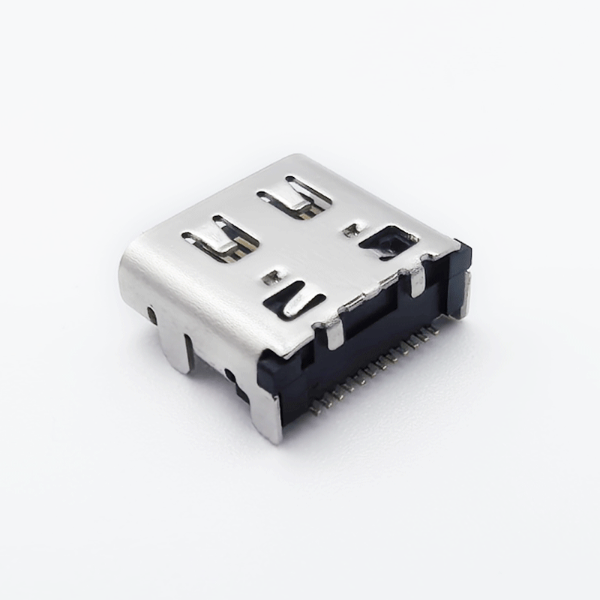

TYPE C 24PIN Female Onboard Type Double-row Patch Length 7.9MM High-speed transmission 40GB

Name: Type YPEC 24PIN On-board Female Base Double-row Patch Length 7.9MM High-speed transmission 40GB

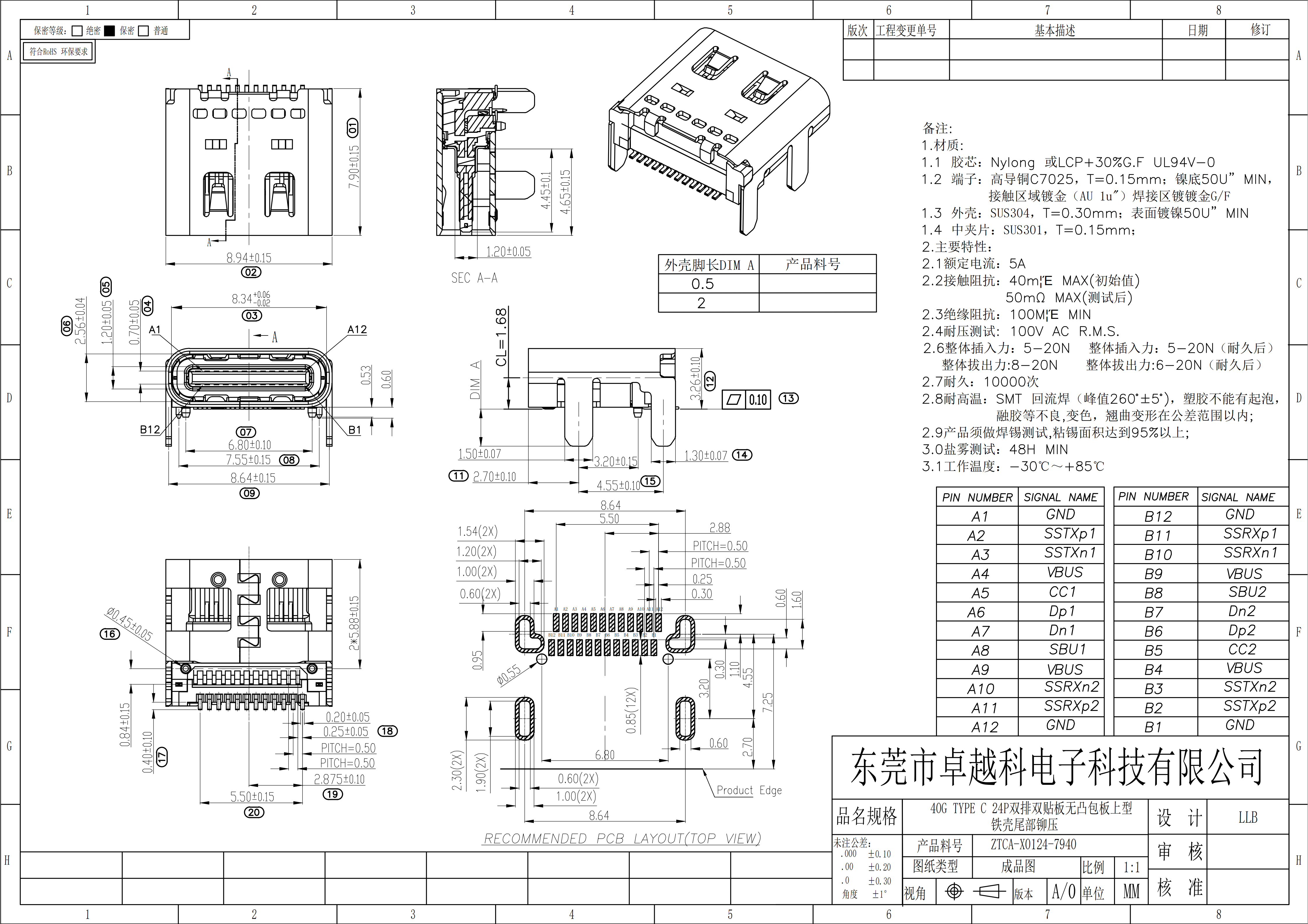

Model: ZTCA-X0124-7940

Material:

Rubber core: Nylong or LCP+30% G. F UL94V-0
Terminal: high conductivity copper C7025, T=0.15mm: nickel base 50U "MIN, contact area gold plated (AU1u") welding area gold plated G/F
Housing: SUS304, T=0.30mm: nickel-plated 50U "MIN
Middle clamp: SUS301, T=0.15mm

Main characteristics:

Rated current: 5A
Contact impedance: 40m; E MAX (initial value): 50mQ MAX (after test)
Insulation impedance: 10OMIE MIN
Withstand voltage test: 100V AC R.M.S
Overall insertion force: 5-20N Overall insertion force: 5-2ON (after durability) Overall pull-out force: 8-20N Overall pull-out force: 6-20N (after durability)
Durability: 10000 times
High temperature resistance: SMT reflow soldering (peak value 260 '± 5'), the plastic shall be free of blister, bad glue melting, discoloration, warping deformation within the tolerance range. 2.9 The product shall be subject to soldering test, and the soldering area shall reach over 95%
Salt spray test: 48H MIN
Operating temperature: - 30 ° C~+85 ° C
