Product Overview
This Type-C waterproof connector adopts an innovative 24PIN surface-mount (SMT) board structure design with a thickness of only 1.4mm, supporting the IPX7 waterproof standard. Equipped with multiple layers of silicone waterproof rings, this connector is specifically designed for high-reliability connections in harsh environments. The product integrates a compact design, high-performance transmission, and excellent protective performance, making it widely used in consumer electronics, industrial equipment, and outdoor scenarios.
Detailed Core Advantages
1. Material and Structure

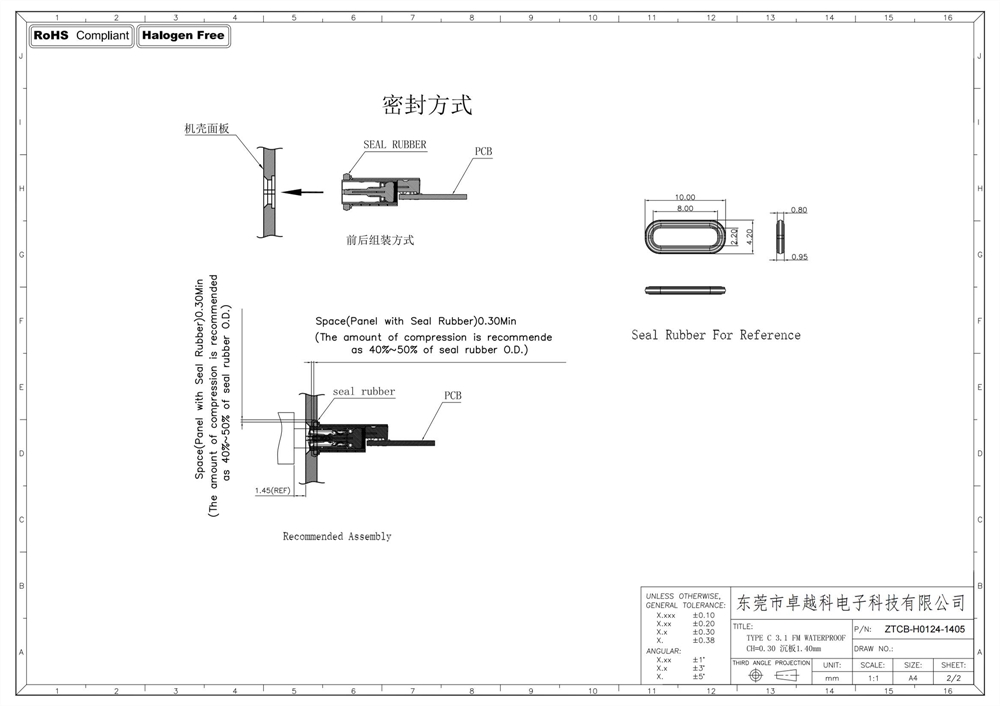

The outer shell is made of high-strength PBT plastic, which is resistant to high temperatures (-25℃~85℃), impact, and chemical corrosion, ensuring stable long-term operation. The 24PIN gold-plated contacts have a thickness of 0.8μm, reducing resistance to below 30mΩ, improving signal integrity and antioxidant capabilities. The double-layer silicone sealing ring design features excellent elastic modulus, tightly fitting the interface gap to achieve both dynamic and static waterproofing.
2. Electrical Performance
Supports the USB 3.1 protocol with a theoretical transmission rate of up to 10Gbps, compatible with the PD3.0 fast-charging protocol, capable of carrying a maximum current of 5A and voltage of 20V (power of 100W). The connector has a plug-and-play lifespan exceeding 10,000 cycles, supporting high-frequency usage requirements; EMI anti-interference design ensures signal stability in complex environments.
3. IPX7 Waterproof Protection
Meets IPX7 certification, capable of withstanding immersion in 1 meter of water for 30 minutes without leakage, effectively resisting rain, spills, and humid environments. The interface interior adopts dispensing sealing technology combined with the SMT board design, further reducing the risk of water vapor intrusion, suitable for outdoor, automotive, and other high-humidity scenarios.
4. Surface-Mount Installation Method
The 1.4mm ultra-thin SMT board structure is flush with the PCB board surface after surface-mount soldering, saving space and avoiding damage from external impacts. Supports automatic placement machine production with precise pad spacing (0.5mm Pitch), combined with reflow soldering technology, ensuring soldering robustness and batch consistency.
5. Application Scenarios
Widely applicable for charging and data transmission in consumer electronic products such as waterproof mobile phones, action cameras, and tablets; waterproof interface solutions for industrial equipment such as industrial computers, sensors, and automated machinery; as well as weather-resistant demand fields such as automotive navigation, drones, LED outdoor lighting, and portable medical devices.
Why Choose This Product?
Ultra-thin and Highly Integrated: The 1.4mm SMT board design perfectly adapts to the trend of slim devices, saving PCB space.
All-Scenario Protection: IPX7 waterproofing + wide temperature tolerance, fearless of extreme environmental challenges.
Balanced Performance and Cost: Gold-plated terminals and PBT material ensure long-term performance, with an optimized structural design reducing overall costs.

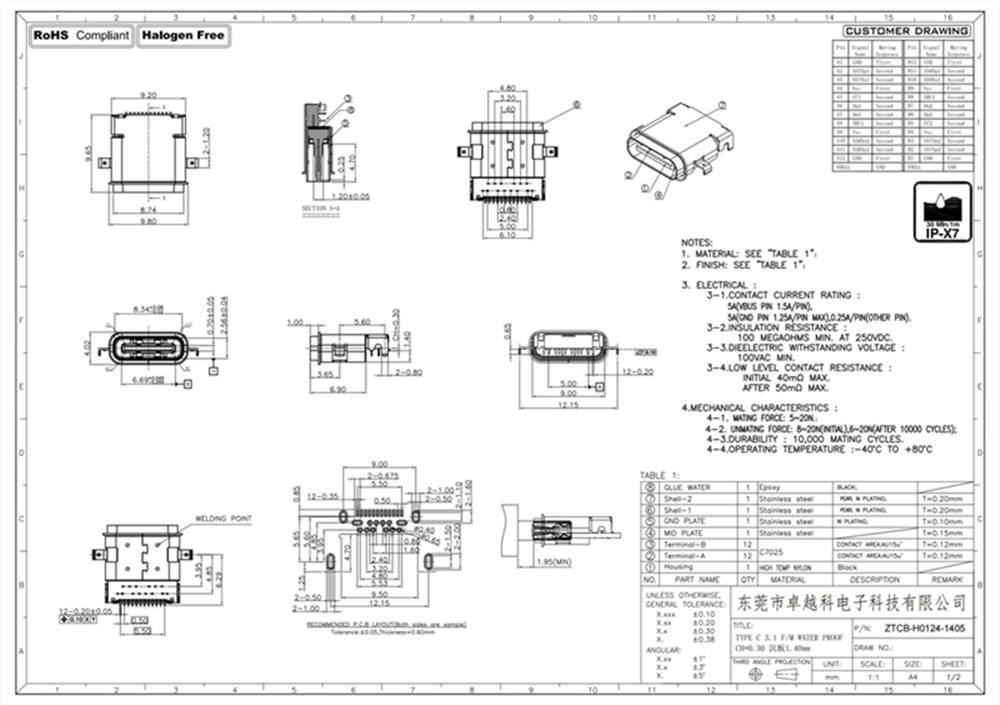

Technical Specifications at a Glance
Interface Type: USB Type-C 24PIN
Waterproof Rating: IPX7 (1 meter/30 minutes)
Current/Voltage: 5A/20V (Max 100W PD Fast Charging)
Operating Temperature: -25℃ ~ +85℃
SMT Board Thickness: 1.4mm (compatible with PCB flush mounting)
