Sinker type

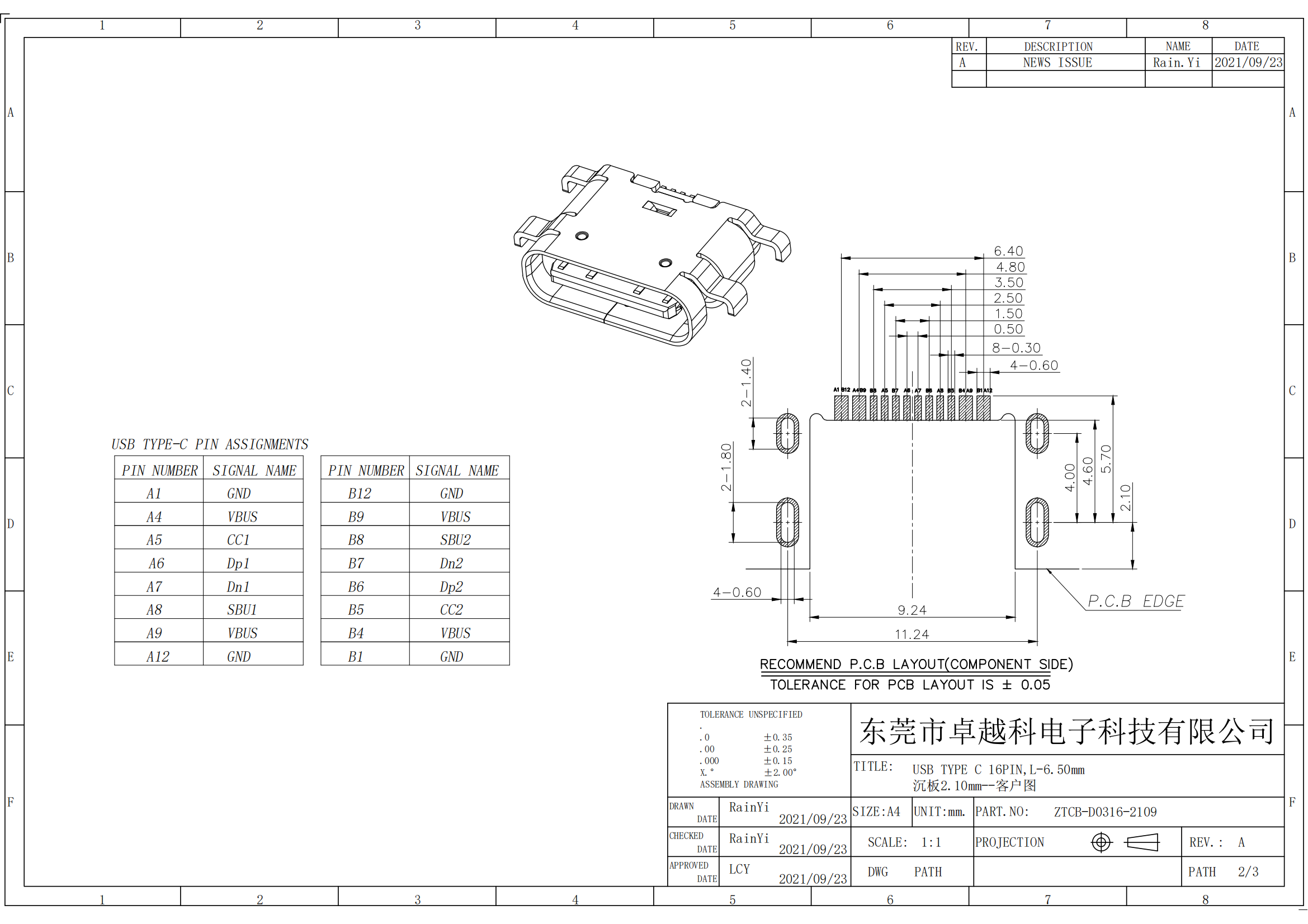

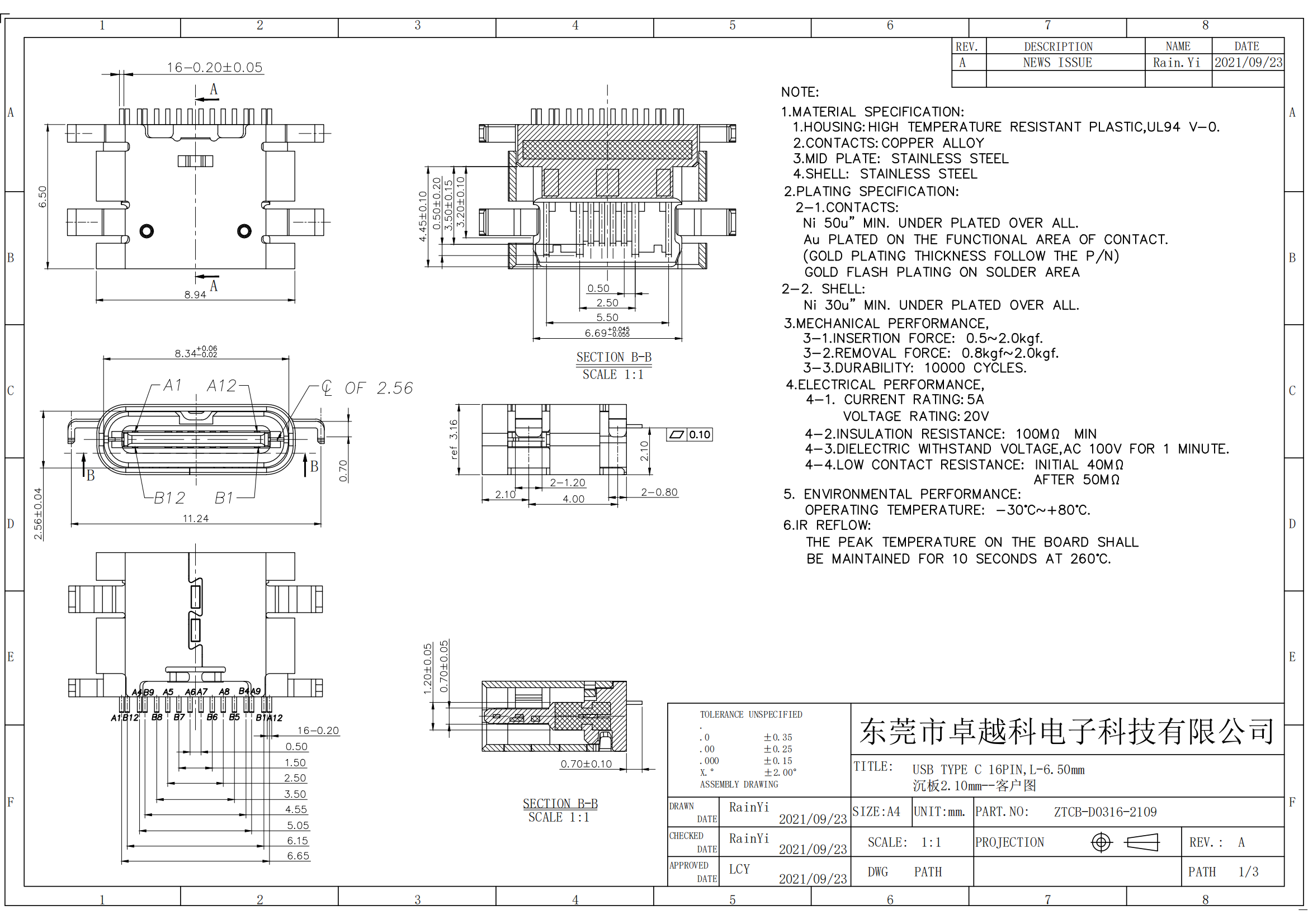

TYPEC 16PIN sinking board female seat sinking board 2.1 length 6.5MM SMT short body patch connector

TYPEC 16PIN sinking board female seat sinking board 2.1 length 6.5MM SMT short body patch connector

The USB Type-C interface has six major advantages:


1. Full functionality: Supports data, audio, video, and charging simultaneously, laying the foundation for high-speed data, digital audio, high-definition video, fast charging, and multi device sharing. One cable can replace multiple cables in the past.
2. Forward and backward insertion: Similar to the Apple Lighting interface, the port has the same front and back sides and supports forward and backward insertion.
3. Bidirectional transmission: Data and power can be transmitted in both directions.
4. Backward compatibility: Through the adapter, it can be compatible with USB Type A, Micro B and other interfaces.
5. Small size: The interface size is 8.3mm X 2.5mm, approximately one-third of the USB-A interface.
6. High speed: Compatible with USB 3.1 protocol, it can support up to 10Gb/s data transfer.
