Manufacturer of type c waterproof mother seat: What are the characteristics of waterproof TYPE-C mother seat?

Manufacturer of type c waterproof mother: What are the characteristics of type c waterproof mother?

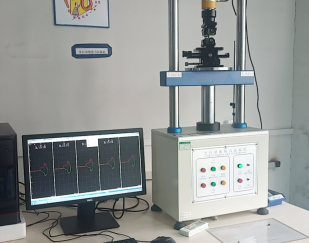

Each type c waterproof mother has an IP parameter at the time of consumption, which refers to the level of waterproof and dustproof. The higher the value, the stronger the waterproof ability. When USB connector manufacturers consume such products, they will use sampling method to test the waterproof grade and air tightness of the products, so as to confirm their IP parameters. At present, the tool for testing the waterproof and airtightness of TYPE-C waterproof mother seat is the airtightness tester. The detailed testing methods are as follows.
According to the IP value designed for TYPE-C waterproof mother seat, the water depth for waterproof detection is confirmed. For example, the test water depth in IP67 specification should be 1m, and the pressure should be about 10kPa, but the pressure will be appropriately increased to 15kPa during practical detection. The detailed inspection steps are: put the type c waterproof nut to be tested into the fixture, press the start button, the cylinder will automatically press down and tighten the sealing ring, and the side cylinder will complete the sealing, then start the air tightness tester, and the instrument will automatically detect according to the set parameters. Once the detection time is up, the screen will display the leakage value of the tested product, and whether the alarm indicator can indicate whether it is qualified. After the experiment, the cylinder will automatically lift up and the operator will take out the product.

In the process of testing TYPE-C waterproof mother seat, it is necessary to strictly abide by the relevant specifications and requirements of our country to ensure that the allowable leakage does not exceed 0.05KPa. During the test, the air inlet time shall be 2s, the pressure stabilization time shall be 2S, the test time shall be 5s, the exhaust time shall be 1s, and the overall test time shall be controlled within 10s. If the detected leakage value exceeds the specification, the alarm indicator of the air tightness tester will light up, indicating that the USB connector manufacturer's product is unqualified. When the qualified rate of waterproof test is lower than the specification requirements, the manufacturer needs to recheck the structural design and consumption process of TYPE-C waterproof mother seat to further improve the waterproof and airtightness of the product.

Typec waterproof mother base manufacturer refers to the connection interface with certain waterproof function, which belongs to a USB connector. It is a new generation interface developed by USB-IF Association to meet the challenge of higher speed interface since 2014. After the launch of TYPE-C waterproof mother seat, it has attracted the attention of various industries. Professionals in the industry think that this new interface will bring a new pattern of electronic connection.

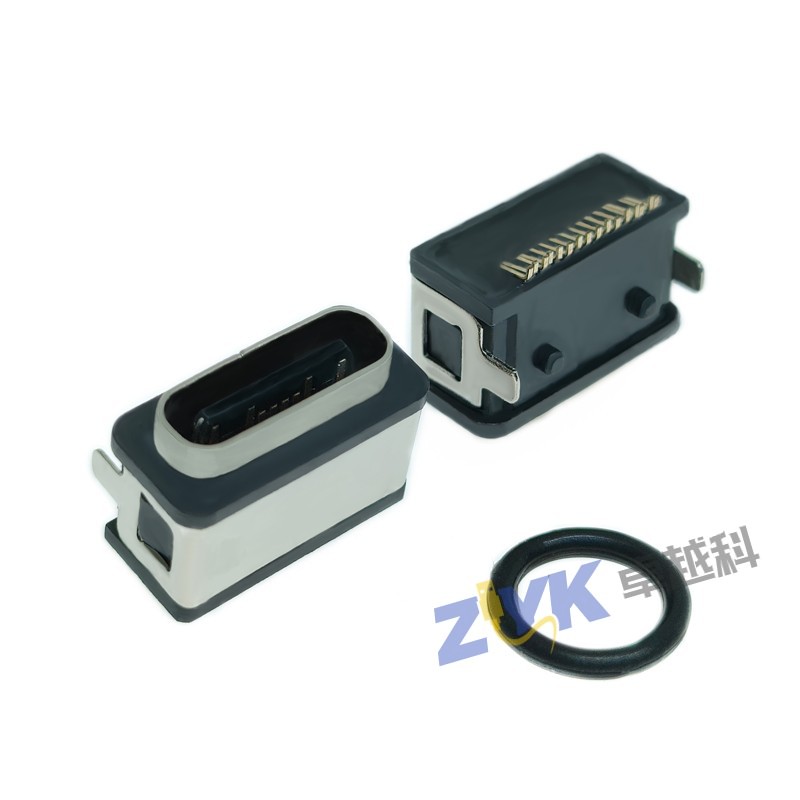

Features of TYPE-C waterproof mother seat:
1. It can provide power supply of various voltage and current specifications, with the limit value up to 100W power.
2. Symmetrical connection, the front and back can be connected, and can accept 10000 times of repeated plugging.
3. High bandwidth, data transmission speed up to 10Gbit/s, regular current value of 3A~5A.
4. Sensitive channel configuration stops function negotiation, such as confirming the insertion direction of the interface, negotiating the power supply function on the interface, Aermatc form and peripheral form.
5. It supports non USB signal transmission, supports various OEM product customization forms, and can complete non USB data transmission through USB TYPE-C waterproof female seat.
6. It is compatible and can connect different types of interfaces through USB switch.
7. It is small in size. Compared with TYPE-A and TYPE-B, it is thinner, which can greatly reduce the size of electronic products.
The waterproof TYPE-C adopts a symmetrical design, which can support the front and back insertion, and handles the disturbance caused by people's inaccurate connector insertion. The interface can provide power supply of various voltage and current specifications, and the power limit can be up to 100W. At the same time, it also supports high broadband, which can complete fast data transmission at a speed of up to 10Gbit/s. The channel configuration of waterproof TYPE-C is very sensitive, and various functions can be negotiated, such as interface power supply function, alternative form and peripheral form. In addition to supporting non USB signal transmission, it also supports a variety of OEM product customization forms, which is widely used in electronic devices. Shenzhen Bubujing can customize C-type USB interfaces with various performances according to customer requirements.
TYPE-C waterproof female seat can be used widely, mainly including electrical charging and data transmission. Compared with the common use of mobile phone charging interface, it can complete the super fast charging of mobile phone. The "five minutes of charging, two hours of power on" of the oppo mobile phone is completed through the TYPE-C waterproof female seat. Computer hosts, notebooks, UAVs, intelligent wearables and other products also use USB 3.0 interfaces to achieve fast charging and data transmission.
