✅ structure size

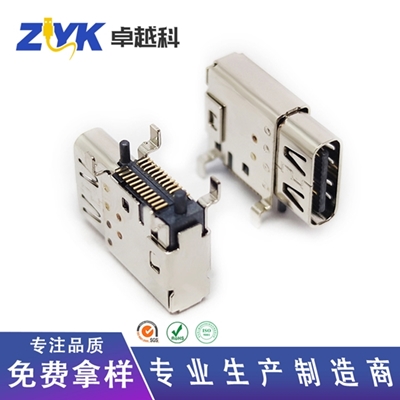

Interface type: USB Type-C Right-Angle SMT Receptacle

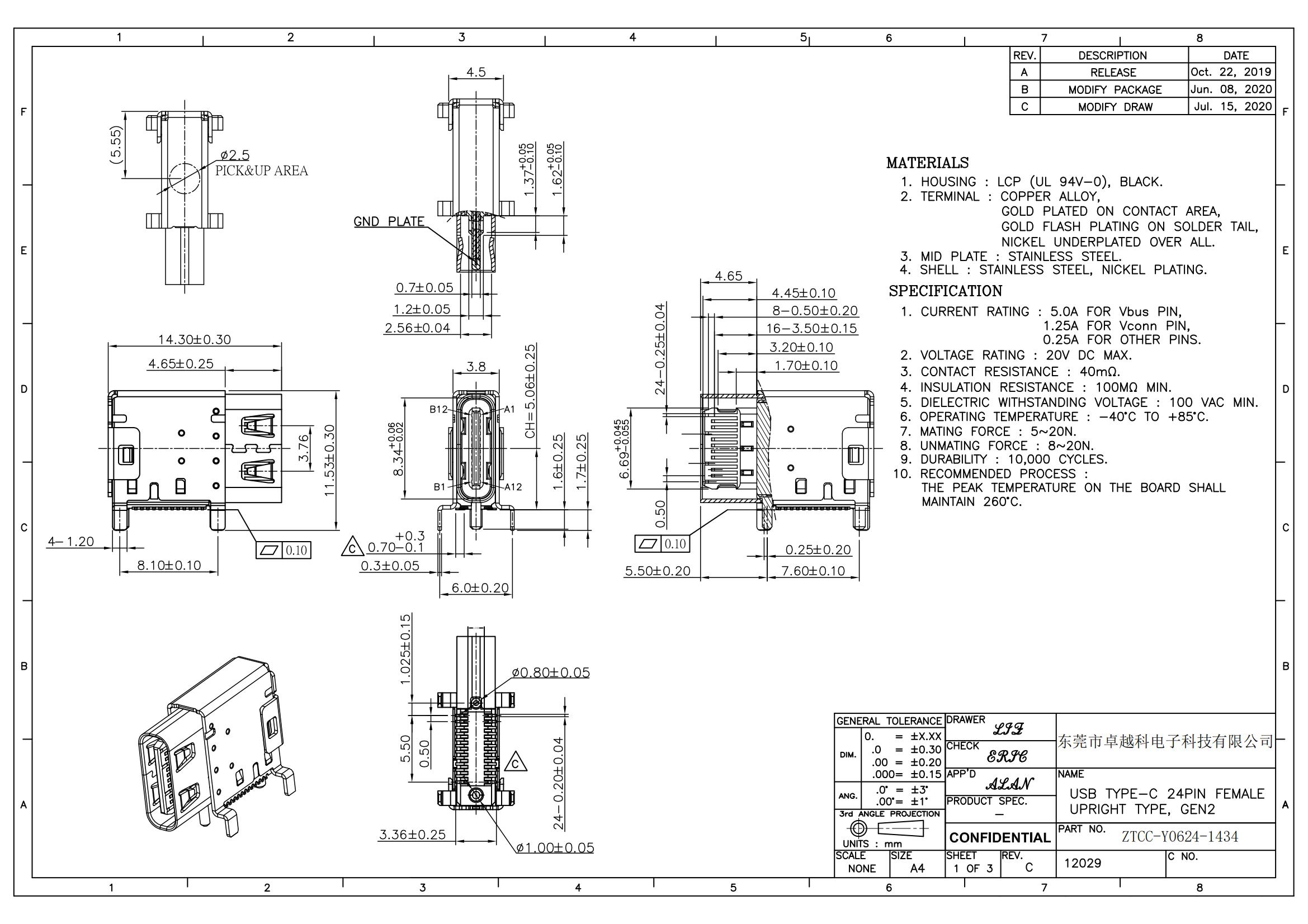

Main body size: L=14.3 CH=5.06mm

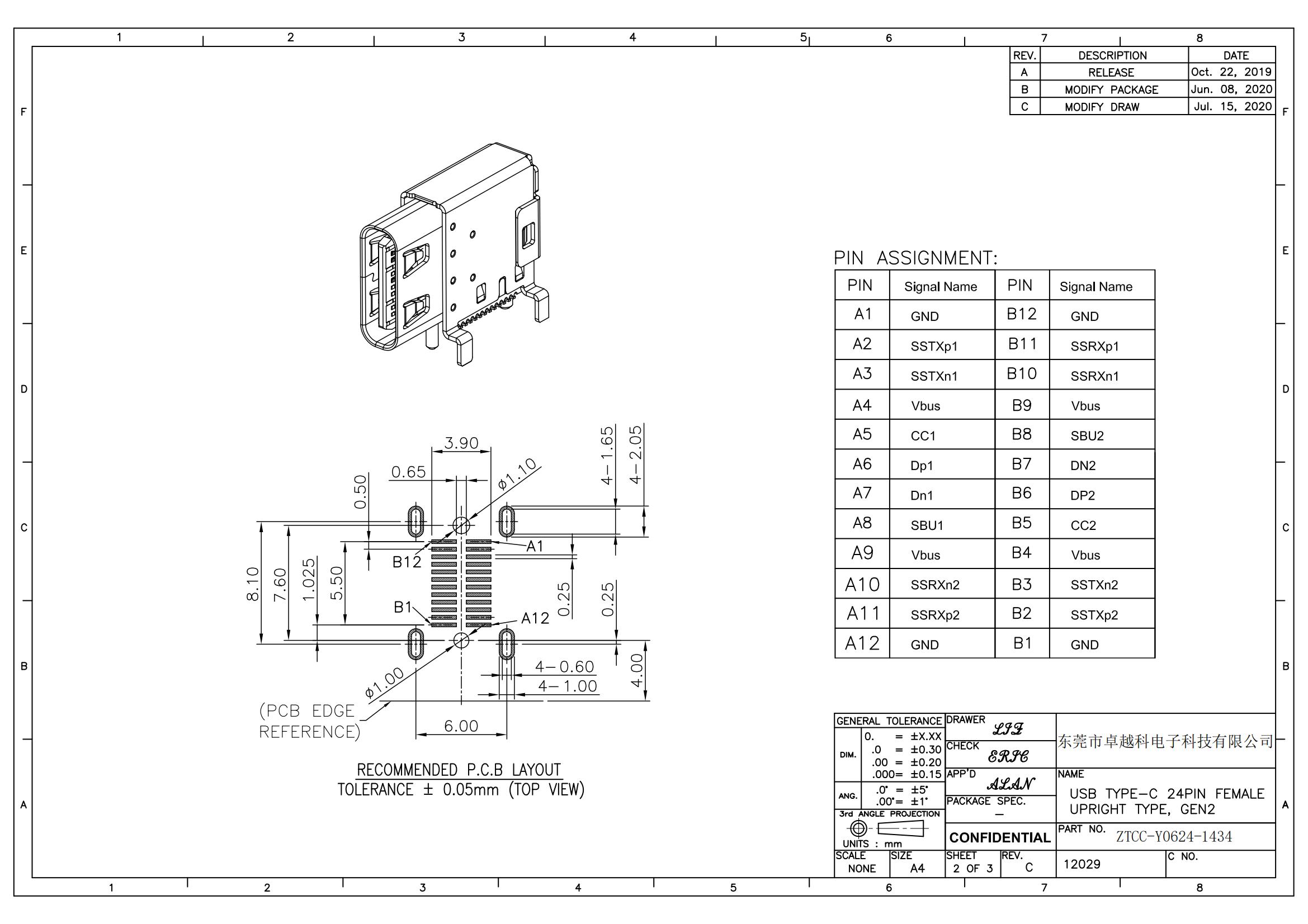

Contact configuration: 24PIN full function pins (including CC1/C2/VBUS/GND/SBU, etc.)
✅ Electrical performance
Transmission protocol: USB4.0+Thunderbolt 4 dual compatibility
Data rate: 40Gbps (synchronous support for DisplayPort 2.0 Alt Mode)
Power transmission: PD3.1 extended power range (28V/5A 140W)
✅ mechanical properties
Plug and unplug lifespan: ≥ 10000 times (IEC 60512-5-1 standard)
Terminal material: Alloy copper (contact surface 0.8 μ m Au)
Packaging form: Tape packaging
Roll specifications:
-Roll: 380 * 32mm
-Quantity per roll: 450pcs
Patch compatibility:
-Support mainstream SMT machines such as Yamaha YSM20/Siemens SIPLACE D4
⚡ anti-interference design
Differential impedance: 85 Ω± 10% (100-2400MHz frequency band)
Shielding effectiveness: ≥ 60dB@6GHz (Metal shell+ferrite magnetic ring)
Product application scenarios
Car electronics
Intelligent cockpit USB-C docking station | Car Ethernet data gateway
industrial equipment
Machine vision camera module | Industrial PLC high-speed data relay
Consumer Electronics
Thunderbolt 4 docking station core interface | 8K video capture card connector
